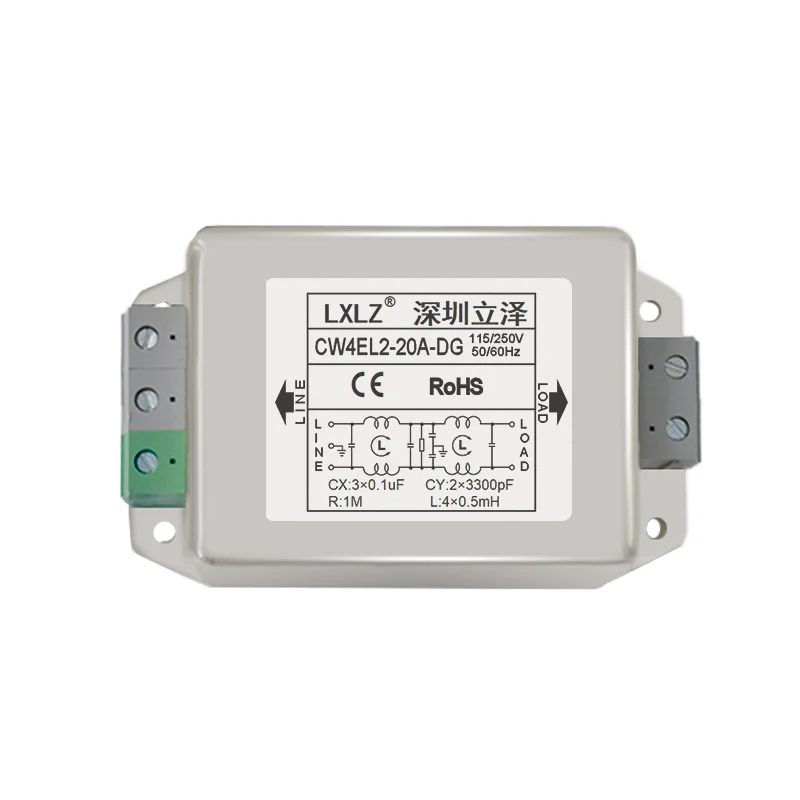

CW4EL2-RG Series Single-Phase AC Power Filter, EMI Anti-Interference, AC 220V

LXLZ Note: This Product Provides Solutions for Parameter Customization And Application.

Enhanced AC Line Filter DIN Rail Low Leakage EMC Filter

With a wide-body nickel-plated steel housing, gold-plated terminal block connections with transparent safety covers, and a zinc-plated industrial DIN rail clip assembly, the CW4EL2-RG installs directly onto standard 35mm DIN rails across current ratings from 1A to 30A at 115VAC / 250VAC, 50Hz / 60Hz.

The CW4EL2-RG Series is an enhanced-performance, low leakage current, DIN rail-mountable single phase AC power line EMI filter — combining the superior EMI suppression capability of LXLZ’s “E” Enhanced filter platform with the installation convenience of a factory-integrated 35mm DIN rail mounting assembly.

Manufactured by LXLZ (Shenzhen Lize Electronics), the CW4EL2-RG is engineered for industrial control panels and automation enclosures where two performance requirements converge: higher EMI attenuation than standard filters provide, and lower leakage current than conventional filter designs permit. This combination makes the CW4EL2-RG the correct specification choice for applications where both EMC compliance margin and ground leakage current limits are active design constraints — including medical adjacent equipment, IT infrastructure, and sensitive industrial control systems.

Specifications

ParameterDetails
Model SeriesCW4EL2-RG — Enhanced / Low Leakage / DIN Rail
PhaseSingle Phase
Rated Voltage115VAC / 250VAC
Frequency50Hz / 60Hz
Current Rating1A / 3A / 6A / 10A / 16A / 20A / 30A
Connection TypeTerminal Block — Wire Lead (LINE / LOAD)
Mounting Type35mm DIN Rail Mount (EN 60715 TS35)
DIN Rail BracketZinc-Plated Steel Clip with Adjustment Screw
Terminal MaterialGold-Plated Copper
Terminal ProtectionTransparent Protective Cover
LINE TerminalsL / N / E (3-position block) — Left Side
LOAD TerminalsMulti-position block — Right Side
HousingNickel-Plated Steel — Wide Body
Filter GradeEnhanced — “E” Series / Low Leakage
Filter TopologyDual-Stage π-Type LC Circuit
CX Capacitor3 × 0.1μF
CY Capacitor2 × 3300pF
Inductance4 × 0.5mH
Bleed Resistor1MΩ / 1/2W
CertificationCE / RoHS

📄 Full datasheet, leakage current specification, insertion loss curves, and dimensional drawings available upon request.

Three Performance Pillars — What CW4EL2-RG Delivers

Pillar 1 — Enhanced EMI Suppression (“E” Grade)

The “E” prefix in CW4EL2 designates the Enhanced performance grade — a measurably higher insertion loss specification compared to standard CW4L2 series filters.

AttributeStandard GradeEnhanced “E” Grade
Insertion Loss LevelStandardHigher attenuation
Common-Mode SuppressionGoodSuperior
Differential-Mode SuppressionGoodSuperior
EMC Compliance MarginMinimum compliantGreater margin above threshold
Target EnvironmentGeneral industrialDemanding / high-noise environments

Pillar 2 — Low Leakage Current Design

The “L” in CW4EL2 specifically designates the Low Leakage current design characteristic — a critical parameter distinct from standard EMI filters.

Why Leakage Current Matters:

In standard EMI filters, Y-class capacitors (CY) connected line-to-earth and neutral-to-earth are the primary common-mode suppression elements — but they also create a path for leakage current to flow to earth ground at the power frequency (50/60Hz). In standard designs, this leakage current can reach levels that:

  • Trip residual current devices (RCDs / GFCIs) — causing nuisance tripping in protected circuits
  • Exceed safety limits for equipment connected to sensitive power distribution systems
  • Create personnel safety concerns in accessible equipment installations
  • Violate leakage current limits specified in medical, IT, and commercial equipment safety standards

The CW4EL2-RG’s Low Leakage design controls CY capacitor values and circuit architecture to maintain effective common-mode suppression while keeping ground leakage current within tightly controlled limits — enabling deployment in environments where standard high-leakage filters cannot be used.

Pillar 3 — DIN Rail Installation Efficiency

The “RG” suffix denotes the DIN Rail (R) with Clip (G) mounting configuration — factory-integrated for direct snap-on installation onto standard 35mm EN 60715 TS35 DIN rails in IEC-standard control panels and enclosures.

Installation benefits:

  • No panel drilling required
  • No additional mounting brackets
  • Snap-on engagement in seconds
  • Locking screw prevents vibration-induced disengagement
  • Repositionable without panel modification

Circuit & Internal Component Details

Capacitor Network

  • CX (X-Class, Differential-Mode): 3 × 0.1μF X-rated line-to-line capacitors attenuating differential-mode conducted EMI — switching transients, harmonic currents, and high-frequency differential noise. X-capacitors do not contribute to ground leakage current
  • CY (Y-Class, Common-Mode): 2 × 3300pF Y-rated capacitors optimized for the Low Leakage design target — providing effective common-mode noise suppression while controlling the 50/60Hz leakage current contribution to within the specified low leakage limit. CY value selection is the primary leakage current control parameter in this design

Inductor Network

  • L: 4 × 0.5mH Enhanced Common-Mode Choke High-permeability toroidal core winding — within the Enhanced “E” platform, inductor performance is optimized in conjunction with the CY-controlled circuit to achieve the higher insertion loss target without relying solely on CY capacitance for common-mode attenuation. This topology allows effective EMI suppression with reduced CY values — directly enabling the low leakage current characteristic

Bleed Resistor

  • R: 1MΩ / 0.5W X-capacitor discharge resistor — safely dissipates stored charge after AC power disconnection within the time window required by IEC 60335 and EN 60950 safety standards

Product Features

Enhanced + Low Leakage — Dual Performance Advantage

The CW4EL2-RG is the correct specification when both higher EMI attenuation AND controlled leakage current are required simultaneously — a combination that standard EMI filters cannot deliver. This dual performance characteristic opens deployment in:

  • Environments with RCD/GFCI protected distribution circuits
  • Equipment with strict leakage current certification limits
  • Multi-filter installations where cumulative leakage current is a design constraint
  • Sensitive power distribution systems in healthcare, IT, and laboratory environments

Industrial DIN Rail Mounting — Zinc-Plated Steel Clip

  • Zinc-plated steel clip with adjustment locking screw — industrial-grade retention for demanding panel environments
  • Compatible with EN 60715 standard 35mm TS35 DIN rail — universal IEC panel rail standard
  • Locking screw engagement prevents clip disengagement under vibration, cable pull, and thermal cycling
  • Tool-assisted installation — snap on, tighten screw, wire — complete in under 90 seconds
  • Enables flexible panel layout positioning without enclosure modification

Wide-Body Nickel-Plated Steel Housing

  • Enlarged body accommodates the enhanced component assembly — higher-performance inductors and optimized capacitor network
  • Fully enclosed construction — maximum EMI shielding effectiveness
  • Nickel plating — corrosion resistance and reliable chassis ground bonding contact
  • Robust mechanical construction for sustained industrial panel service life

Gold-Plated Terminal Blocks with Transparent Safety Covers

  • Gold-plated copper terminals — minimal contact resistance, oxidation-free long-term performance at rated current
  • Transparent protective covers — live terminal protection and contamination prevention
  • 3-position LINE terminal block (L/N/E) — full earth continuity through the filter
  • Multi-position LOAD terminal block — accommodating higher current cable cross-sections
  • Clear directional labeling — eliminates wiring polarity errors

Dual Voltage: 115VAC / 250VAC

Single product variant covers both North American (115V/60Hz) and international (220–250V/50Hz) power standards — no region-specific inventory variants required

Low Leakage Current — Application Impact

Where Low Leakage is a Specification Requirement

RCD / GFCI Protected Circuits Residual current devices trip at leakage current thresholds (typically 30mA for personnel protection, 10mA or lower for equipment protection). In installations with multiple EMI filters on a shared RCD-protected circuit, cumulative leakage current from standard filters can trigger nuisance tripping. The CW4EL2-RG’s low leakage design allows multiple units to operate on the same protected circuit without exceeding the RCD trip threshold.

Medical Adjacent & Healthcare Environments IEC 60601-1 and related medical equipment standards impose strict touch current and leakage current limits on equipment used in or near patient care areas. While the CW4EL2-RG is not itself a medical-certified component, its low leakage characteristic enables integration into equipment designs targeting medical safety standards without the filter becoming the limiting factor in leakage current budgets.

IT Equipment & Data Infrastructure IEC 62368-1 (replacing IEC 60950-1) specifies leakage current limits for IT and AV equipment. In high-density equipment installations, cumulative filter leakage from multiple units in a rack or cabinet can challenge compliance. Low leakage filters reduce the per-unit contribution to the total leakage current budget.

Sensitive Industrial Control Systems High-impedance analog measurement and control systems can be affected by leakage current flowing through ground paths. Low leakage filter designs reduce ground-referenced interference contributions in sensitive measurement environments.

Why Source From Our Factory

In-House Enhanced & Low Leakage Engineering

The “E” enhanced performance and “L” low leakage characteristics are achieved through our own engineering — circuit topology design, component selection, and in-house validation. We manufacture:

  • Custom toroidal inductor core winding
  • Full enclosure fabrication and surface treatment
  • DIN rail clip fabrication and zinc treatment
  • In-house leakage current measurement and insertion loss verification

OEM & ODM Capability

  • Custom leakage current targets — tighter limits for specific certification requirements
  • Custom insertion loss performance — enhanced circuit tuning for demanding EMC standards
  • Custom current ratings — 1A to 30A and beyond
  • Modified DIN rail configurations — alternative rail profiles or mounting orientations
  • Private label branding — full OEM nameplate and documentation customization
  • Application-specific engineering — filter design optimized for specific load types, standards, and leakage budgets

Quality Control & Testing

Test ItemSpecification
Hi-Pot (Dielectric Withstand)1500VAC Line-to-Ground / 1 min
Insulation Resistance≥ 100MΩ @ 500VDC
Leakage CurrentPer Low Leakage specification limit
Insertion LossPer Enhanced grade specification
DIN Rail Clip RetentionMechanical pull-off force verification
Terminal TorquePer block specification
Visual & Mechanical100% per unit

Leakage current measurement performed on every production batch — confirming the Low Leakage specification is consistently met in production output, not only in engineering validation samples.

Certifications

  • ✅ CE Certified — EMC Directive 2014/30/EU & LVD 2014/35/EU
  • ✅ RoHS Compliant — EU Directive 2011/65/EU
  • 🔄 Additional certifications available on program request

Order & Lead Time

Order TypeLead Time
Sample (1–5 pcs)3 – 7 business days
Small Batch (Stock Models)7 – 12 business days
Volume Order12 – 22 business days
Custom / OEM Program20 – 35 business days

Mixed current-rating orders accepted within single PO. Shipping: DHL / FedEx / UPS | Sea & Air freight for volume orders Documentation: Invoice, packing list, CO, CE declaration, leakage current and insertion loss test reports

Suitable Buyer Profiles

✔ Industrial Panel Builders & System Integrators Building DIN rail control panels on RCD-protected distribution circuits — where cumulative leakage current from multiple standard EMI filters would cause nuisance tripping or exceed enclosure leakage limits

✔ OEM Equipment Manufacturers with Dual EMC & Leakage Requirements Designing products that must simultaneously meet high EMI attenuation targets and strict leakage current limits — requiring a filter that addresses both constraints without compromise

✔ Medical & Healthcare Facility Equipment Suppliers Specifying power line filtering for non-medical equipment deployed in healthcare environments where leakage current control is a facility-level requirement

✔ IT & Data Infrastructure Equipment Manufacturers Integrating EMI filters into IT equipment designs where IEC 62368-1 leakage current limits constrain filter selection

✔ Electronics Distributors Serving Technical Industrial Markets Expanding catalog with a premium enhanced/low leakage DIN rail EMI filter — differentiated from commodity standard-grade products by dual performance specifications with supporting test documentation

✔ Engineering Procurement Teams Qualifying a factory-direct, CE-certified supplier capable of providing leakage current test data and enhanced insertion loss performance documentation for demanding application specifications

Installation Notes

⚠️  Verify DIN rail is EN 60715 standard 35mm (TS35)
    profile before installation.

⚠️  After snap-on rail engagement, tighten the
    zinc clip locking screw to prevent
    vibration-induced disengagement.

⚠️  Connect LINE terminal block (L/N/E) to AC
    power source input only.
    Connect LOAD terminal block to protected
    equipment output only.
    Incorrect connection degrades filter performance.

⚠️  Bond E terminal and filter housing to panel
    chassis ground. Without ground connection,
    both common-mode suppression and low leakage
    current performance are non-functional.

⚠️  In RCD-protected installations, verify total
    cumulative leakage current from all connected
    filters does not approach the RCD trip threshold.
    Contact our engineering team for leakage
    budget calculation assistance.

⚠️  Tighten all terminal screws to specified torque.
    Replace transparent terminal covers after
    wiring before panel energization.

⚠️  Use cable cross-sections rated for the selected
    current per local electrical installation codes.
